Stability of slope subjected to unconfined seepage
In this example we consider the stability of a layered slope. The seepage pressure distribution and the location of the phreatic surface are not known a priori except that the groundwater table is located at the foot of the slope and the conditions at a distance of 15m from the crest of the slope correspond to hydrostatic conditions.
Code
"""Preample"""
from OptumGX import *
import matplotlib.pyplot as plt
gx = GX()
# Project
project_name = "Example Stability of slope subjected to unconfined seepage"
prj = gx.create_project(project_name)
prj.get_current_model().delete()
# Model (2D)
model2d = prj.create_model('2D model',model_type='plane_strain')
"""Geometry"""
depth = 12
#Model outline
model2d.add_polygon(points=[[0,0],[15,0],[25,-7],[32,-7],[32,-depth],[0,-depth]])
#Layer boundary (lower)
model2d.add_line(p0=[0,-5],p1=[32,-5])
#Select and remove the part of the line outside of model outline
sel = model2d.select(p0=[30,-5],types="edge")
model2d.delete_shapes(sel)
#Layer boundary (upper)
model2d.add_line(p0=[0,-1],p1=[32,-1])
#Select and remove the part of the line outside of model outline
sel = model2d.select(p0=[30,-1],types="edge")
model2d.delete_shapes(sel)
"""Materials"""
#Soil domain (Upper)
Soft_Clay = prj.MohrCoulomb(
name='Soft Clay',
color=rgb(185,137,129),
c = 5,
phi= 25,
gamma_dry=19,
gamma_sat=19,
K0=0.69,
drainage='drained_undrained'
)
#Selecting soil domain and setting material
SoilFace = model2d.select(p0=[1,-0.5],types='face')
model2d.set_solid(shapes=SoilFace,material=Soft_Clay)
#Soil domain (middle)
Firm_Clay = prj.MohrCoulomb(
name='Firm Clay',
color=rgb(119,67,56),
c = 10,
phi= 20,
gamma_dry=20,
gamma_sat=20,
K0=0.66,
drainage='drained_undrained'
)
#Selecting soil domain and setting material
SoilFace = model2d.select(p0=[1,-2],types='face')
model2d.set_solid(shapes=SoilFace,material=Firm_Clay)
#Soil domain (Lower)
Stiff_Clay = prj.MohrCoulomb(
name='Stiff Clay',
color=rgb(84,47,38),
c = 20,
phi= 22,
gamma_dry=21,
gamma_sat=21,
K0=0.63,
drainage='drained_undrained',
)
#Selecting soil domain and setting material
SoilFace = model2d.select(p0=[1,-7],types='face')
model2d.set_solid(shapes=SoilFace,material=Stiff_Clay)
"""Supports"""
#Set standard supports
model2d.set_standard_fixities()
"""Groundwater"""
#Select and set groundwater level at toe
sel = model2d.select(p0=[30,-7],types='edge')
model2d.set_water_table(sel)
#Select left boundary up to the soft clay layer
sel = model2d.select(p0=[0,-1],p1=[0,-depth],types='edge',option='blue')
#Set fixed head
model2d.set_fixed_head(sel,head=-1) #Head y-coordinate
"""Screenshot model"""
# Zoom and center model
model2d.zoom_all()

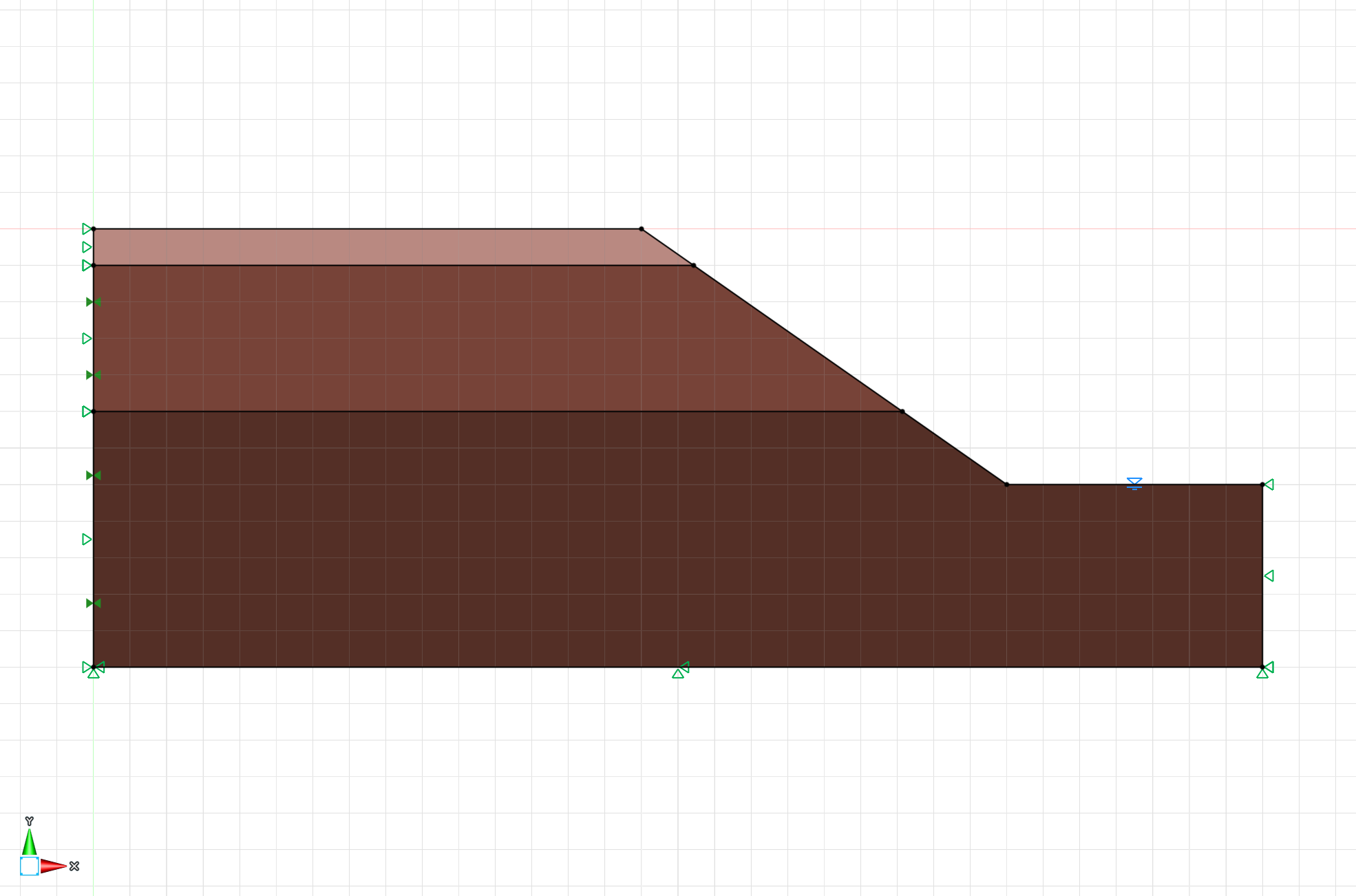

gx.screenshot(file_path='Geometry.png') #Screenshot settings: Application settings->Display->Screenshot
"""Analysis"""
#Define analysis parameters
model2d.set_analysis_properties(
analysis_type= 'factor_of_safety',
element_type='mixed',
no_of_elements=2000,
mesh_adaptivity= True,
adaptivity_iterations=3,
time_scope= 'long_term',
)
#Begin analysis
prj.run_analysis()
"""Post processing"""
###Save results in object to avoid excessive interaction with GX API.
res = model2d.output
###Output
FoS = res.critical_results.factor_of_safety
print("Factor of safety:", round(FoS,ndigits=3))
###Pictures

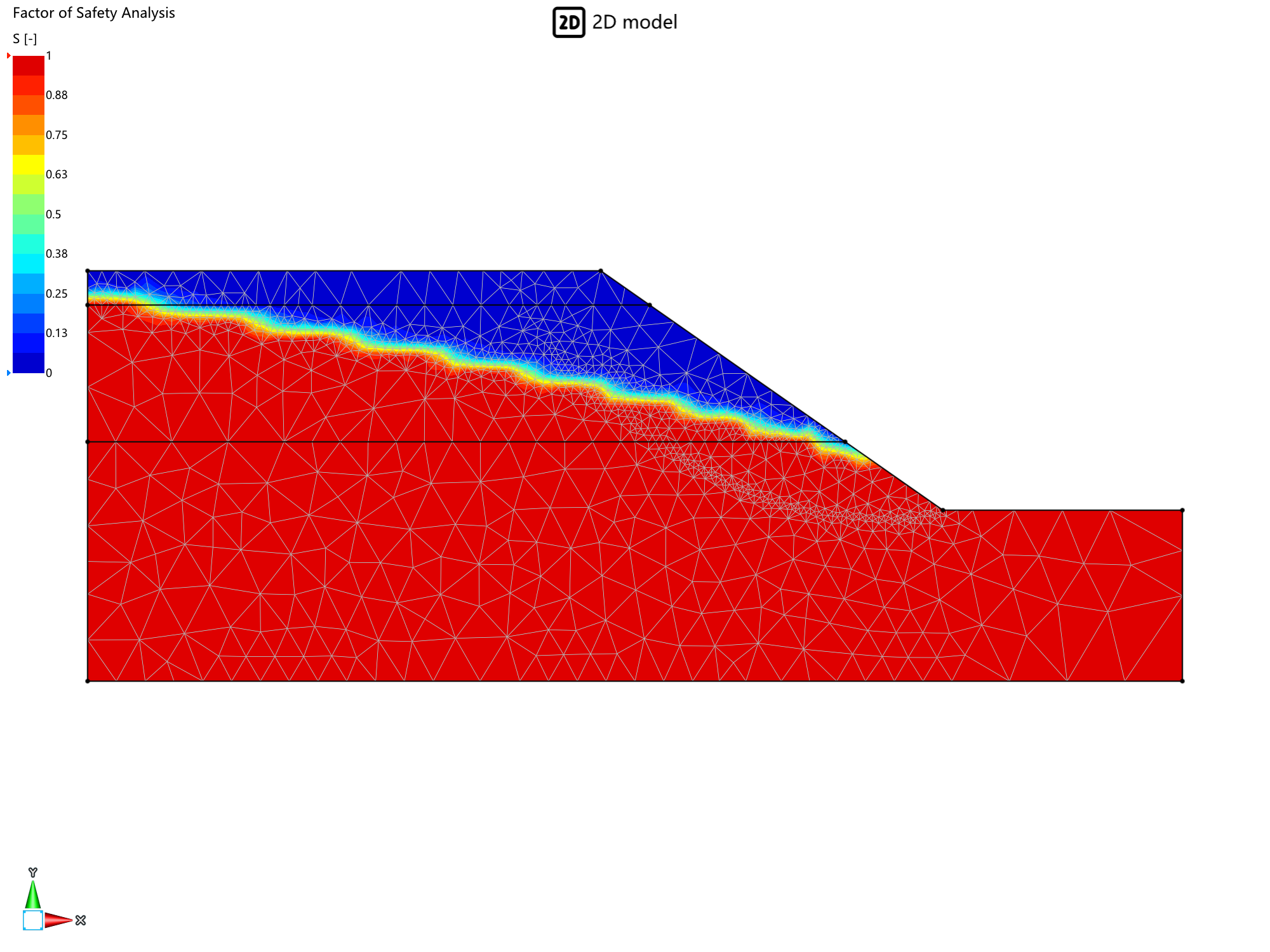

model2d.take_picture(
result_path='Solid/Seepage/Saturation/S',
file_path='Saturation.png',
options={
'width': 2000,
'height': 1500,
'mesh_overlay': True,
'medium':"screenshot",
'grid':False,
'colorbar_min':0,
'colorbar_max':1,
'colorbar_text_scale':1.5,
})
#Obtain the maximum shear dissipation
smax = np.max([res.solid[i].results.plasticity.shear_dissipation.value for i in range(len(res.solid))])

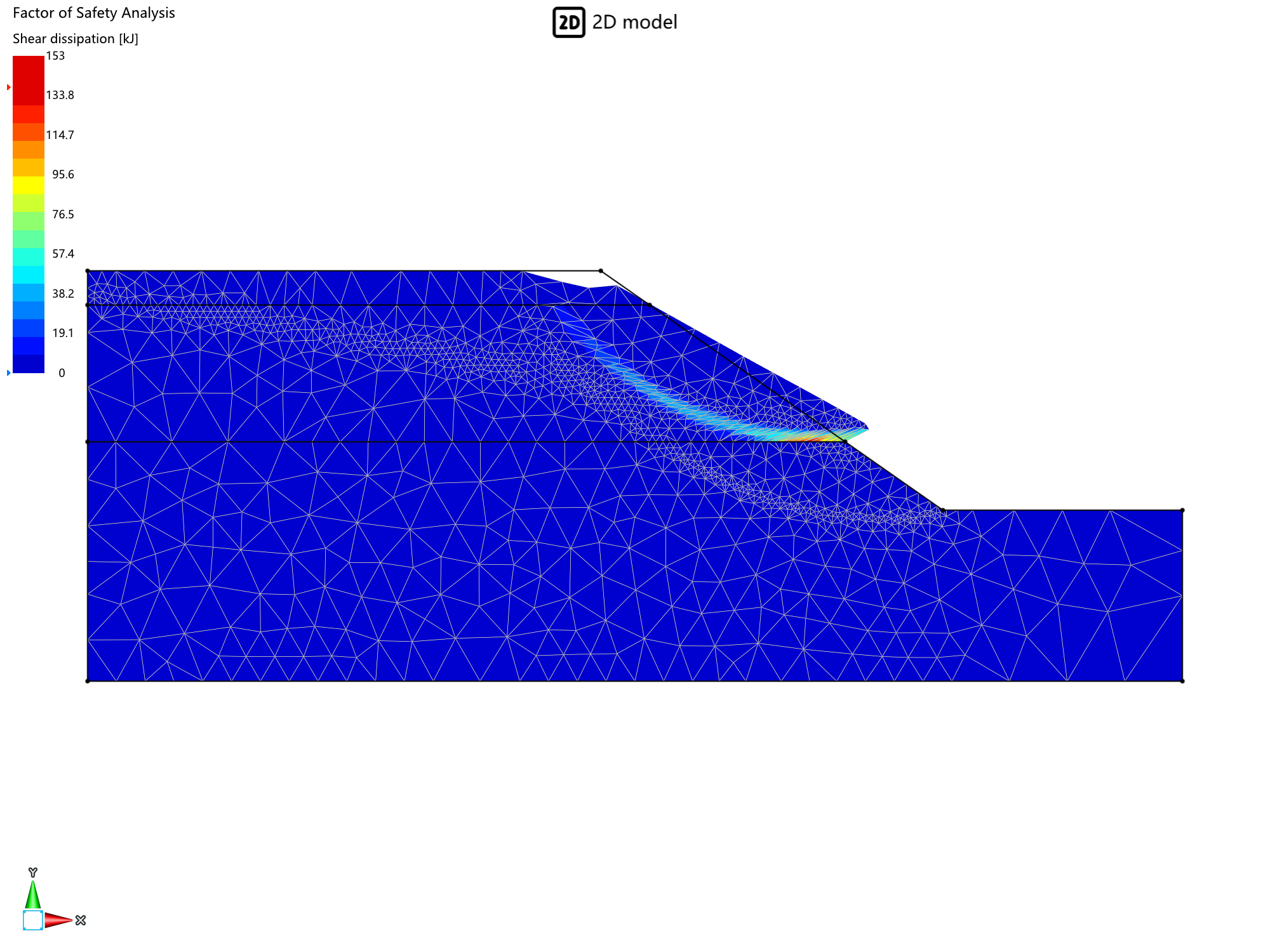

model2d.take_picture(
result_path='Solid/Plasticity/Shear dissipation',
file_path='SlipSurface.png',
options={
'width': 2000,
'height': 1500,
'mesh_overlay': True,
'medium':"screenshot",
'grid':False,
'colorbar_min':0,
'average_vertex_values': False,
'colorbar_max':smax*0.9,
'colorbar_text_scale':1.5,
'deformation_percent': 100,
'deformation_scale': 1,
}
)
#If desired, save the GX file produced by the script by setting: save = True
save = False
if save: #Save GX file to current working directory
current_path = os.getcwd()
filename =project_name+".gxx"
gx.save_project(file_path=os.path.join(current_path, filename))
